Nameplate Information

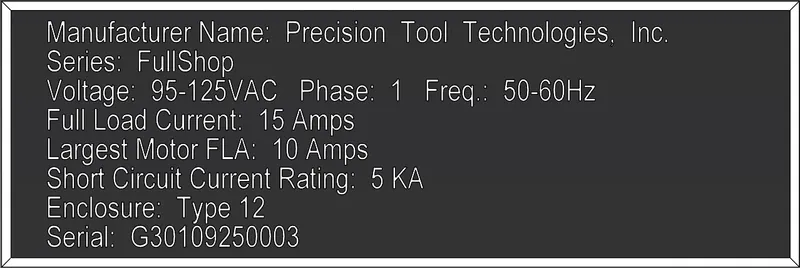

The nameplate on your FullShop system contains important identification and electrical specifications. Below is an example of a typical FullShop nameplate:
Specifications
Section titled “Specifications”| Specification | Value |
|---|---|
| Manufacturer | Precision Tool Technologies, Inc. |
| Series | FullShop |
| Voltage | 95-125VAC |
| Phase | 1 |
| Frequency | 50-60Hz |
| Full Load Current | 15 Amps |
| Largest Motor FLA | 10 Amps |
| Short Circuit Current Rating | 5 KA |
| Enclosure | Type 12 |
| Serial Number Format | G301092500003 |
Understanding the Nameplate
Section titled “Understanding the Nameplate”Serial Number
Section titled “Serial Number”The serial number (G301092500003) uniquely identifies your unit and should be referenced in any communication with support.
Electrical Requirements
Section titled “Electrical Requirements”- The unit requires single-phase power (95-125VAC, 50-60Hz)
- Maximum current draw is 15 Amps
- Largest motor in the system draws 10 Amps
- Short circuit current rating is 5 KA
Enclosure Rating
Section titled “Enclosure Rating”Type 12 enclosure provides:
- Protection against dust
- Protection against dripping and light splashing of water
- Indoor use protection
