Hardware Kits Included in Shipment
DFU-1.1 kits include the below (1 kit used per coolant)
Section titled “DFU-1.1 kits include the below (1 kit used per coolant)”| Part Number | Description | Quantity |
|---|---|---|
| DFU-1.1 | DIGITAL FEED UNIT GEN 3 | 1 |
| SWA-DFU | DFU FIRMWARE (installed on above device) | 1 |
| PTT2815 | DFU HANGING BRACKET, GEN 3 | 1 |
| P-12666 | CHECK VALVE SS 3/4 NPTM X 3/4 NPTF (WATER OUTPUT) | 1 |
| P-12674 | POWER CORD 9.19' BLACK | 1 |

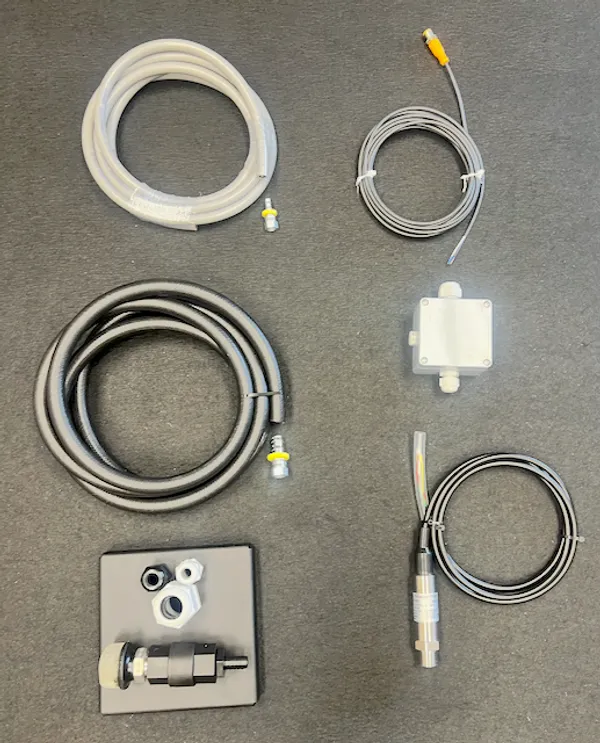

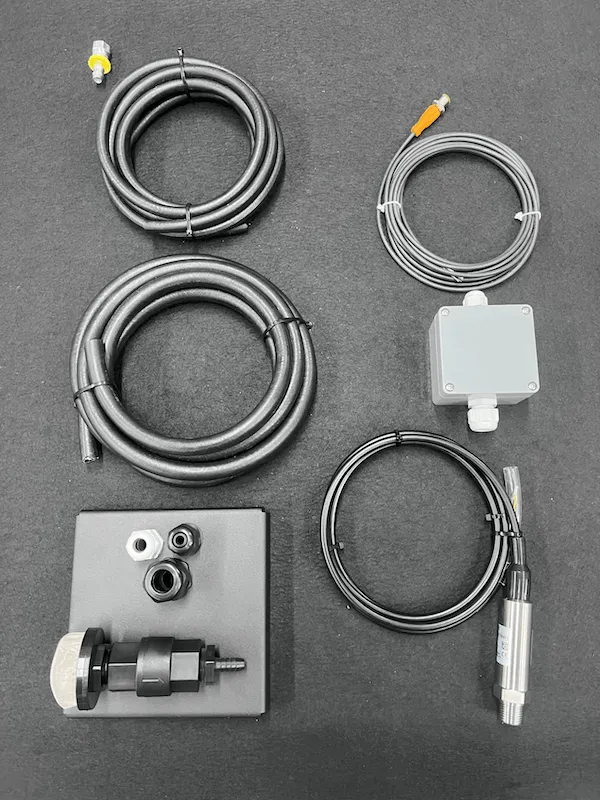

| HK-G3 | HOSE KIT | 1 |
| BFS-1.1-KIT | BUCKET FILL STATION KIT | 1 |

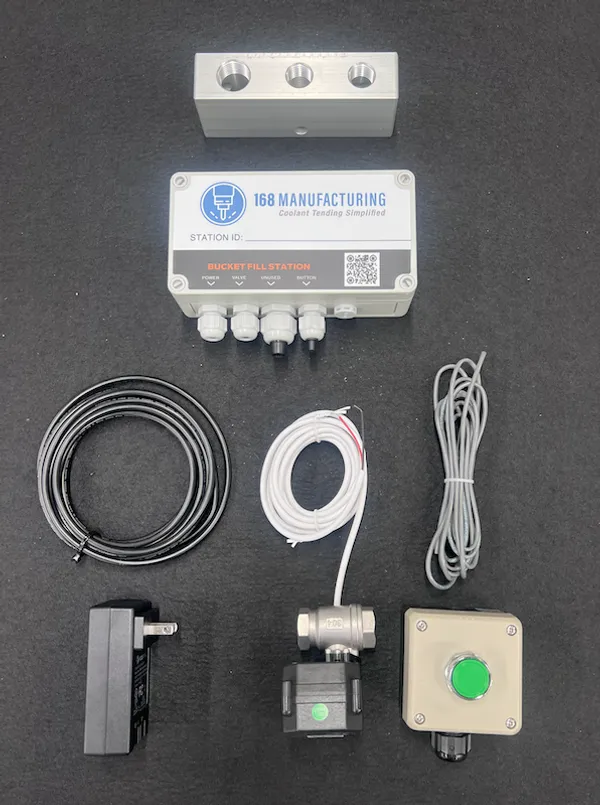

BFS-1.1 kits include the below (1 kit used per bucket fill station)
Section titled “BFS-1.1 kits include the below (1 kit used per bucket fill station)”| Part Number | Description | Quantity |
|---|---|---|
| BFS-1.1 | BUCKET FILL STATION BUTTON ASSEMBLY | 1 |
| BWS-SC2A-10 | 10' CABLE, BUTTON TO SVI, TRIM TO LENGTH | 1 |
| SVI-2.1 | SVI ASSEMBLY, FOR BUCKET FILL STATION | 1 |
| ELT-FH-S-DN15 | FullShop Motorized Fill Valve | 1 |
| P-12699 | AC/DC WALL MOUNT ADAPTER 24V 24W | 1 |
| PTT2820 | MIXING MANIFOLD ASSEMBLY | 1 |
| P-12516-3.5 | VELCRO FOR MOUNTING SVI | 2 |
| P-12700 | POWER CABLE, BLACK, 10' | 1 |
SVI-1.1 kits include the below (1 kit used per CNC)
Section titled “SVI-1.1 kits include the below (1 kit used per CNC)”| Part Number | Description | Quantity |
|---|---|---|
| SVI-2.1 | SVI ASSEMBLY, FOR BUCKET FILL STATION | 1 |
| SWA-SVI | SVI FIRMWARE (installed on above device) | 1 |
| SB2.2 | LEVEL SENSOR BRACKET | 1 |
| P-12652 | LEVEL AND TEMPERATURE SENSOR | 1 |
| P-12699 | AC/DC WALL MOUNT ADAPTER 24V 24W | 1 |
| ELT-FH-S-DN15 | FullShop Motorized Fill Valve | 1 |
| PTT2820 | MIXING MANIFOLD ASSEMBLY | 1 |
| P-12516-3.5 | VELCRO FOR MOUNTING SVI | 2 |
| P-12700 | POWER CABLE, BLACK – CUT TO LENGTH | BULK |
